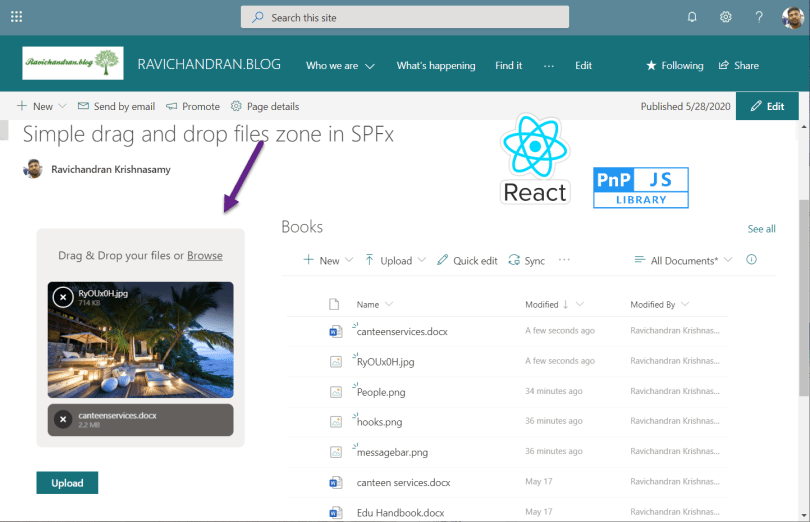

Simple drag and drop files upload zone in SPFx

This article provides steps to implement the Simple drag and drop files upload zone in the SharePoint Framework (SPFx), we have used react-filepond implement this functionality.

Create a new web part project

Open power shell and run following comment to create a new web part by running the Yeoman SharePoint Generator

yo @microsoft/sharepoint

When prompted:

Enter the webpart name as your solution name, and then select Enter.
Select Create a subfolder with solution name for where to place the files.
Select Y to allow the solution to be deployed to all sites immediately.
Select N on the question if solution contains unique permissions.
Select WebPart as the client-side component type to be created.

The next set of prompts ask for specific information about your web part:

Enter your web part name, and then select Enter.
Enter your web part description, and then select Enter.
Select React framework as the framework you would like to use, and then select Enter.

Start Visual Studio Code (or your favorite code editor) within the context of the newly created project folder.

cd .\web part name\
code .

Install the library and required dependencies

npm install @pnp/sp --save
npm install react-filepond filepond --save
npm i filepond-plugin-image-preview
npm i filepond-plugin-image-exif-orientation

Configure the custom properties

Create a new source code file under the src\webparts\<web part name>\components\ folder of the solution. Call the new file I<web part name>State.ts and use it to create a TypeScript Interface

export interface ISpfxReactDropzoneState {
  files: any[];
}

Update the <web part name>.tsx file. First, add some import statements to import the types you defined earlier. Notice the import for I<web part name>Props and I<web part name>State. There are also some imports for the PnP components used to render the UI of the PnP React component and pnp sp imports.

import * as React from 'react';
import styles from './SpfxReactDropzone.module.scss';
import { ISpfxReactDropzoneProps } from './ISpfxReactDropzoneProps';
import { ISpfxReactDropzoneState } from './ISpfxReactDropzoneState';
import { PrimaryButton } from 'office-ui-fabric-react';
import { autobind } from 'office-ui-fabric-react/lib/Utilities';

import { sp } from "@pnp/sp";
import "@pnp/sp/webs";
import "@pnp/sp/files";
import "@pnp/sp/folders";

import { FilePond, registerPlugin } from 'react-filepond';
import 'filepond/dist/filepond.min.css';
import FilePondPluginImageExifOrientation from 'filepond-plugin-image-exif-orientation'
import FilePondPluginImagePreview from 'filepond-plugin-image-preview'
import 'filepond-plugin-image-preview/dist/filepond-plugin-image-preview.css'

Replace this render function with the following code.

  public render(): React.ReactElement<ISpfxReactDropzoneProps> {
    return (
      <div className={styles.spfxReactDropzone}>
        <FilePond files={this.state.files} allowMultiple={true} onupdatefiles={fileItems => {
          this.setState({
            files: fileItems.map(fileItem => fileItem.file)
          });
        }} />
        <br />
        <PrimaryButton text="Upload" onClick={this._uploadFiles} />
      </div>
    );
  }

Update the React component type declaration and add a constructor, as shown in the following example.

export default class SpfxReactDropzone extends React.Component<ISpfxReactDropzoneProps, ISpfxReactDropzoneState> {
  constructor(props: ISpfxReactDropzoneProps, state: ISpfxReactDropzoneState) {
    super(props);
    sp.setup({
      spfxContext: this.props.context
    });
    this.state = ({ files: [] });
    registerPlugin(FilePondPluginImageExifOrientation, FilePondPluginImagePreview)
  }

Add below event function inside the react component for upload files to SharePoint Library

  @autobind
  private async _uploadFiles() {
    this.state.files.forEach(function (file, i) {
      // you can adjust this number to control what size files are uploaded in chunks
      if (file.size <= 10485760) {
        // small upload
        const newfile = sp.web.getFolderByServerRelativeUrl("/sites/TheLanding/Books/").files.add(file.name, file, true);
      } else {
        // large upload
        const newfile = sp.web.getFolderByServerRelativeUrl("/sites/TheLanding/Books/").files.addChunked(file.name, file, data => {
        }, true);
      }
    });
    this.setState({ files: [] })
  }

Deploy the solution

You’re now ready to build, bundle, package, and deploy the solution.

Run the gulp commands to verify that the solution builds correctly.

gulp build

Use the following command to bundle and package the solution.

gulp bundle --ship
gulp package-solution --ship

Browse to the app catalog of your target tenant and upload the solution package. You can find the solution package under the sharepoint/solution folder of your solution. It is the .sppkg file. After you upload the solution package in the app catalog. you can find and the web part anywhere across the tenant.

Sharing is caring!

If you have any questions, feel free to let me know in the comments section.
Happy coding!!!
