Modern Page Provisioning in the SharePoint Framework (SPFx)

This article provides steps to implement the mordern page provisioning using PnPjs in the SharePoint Framework (SPFx), generally PnPjs clientside pages module allows you to created, edit, and delete modern SharePoint pages. There are methods to update the page settings and add/remove client-side webparts.

Create a new web part project

Open power shell and run following comment to create a new web part by running the Yeoman SharePoint Generator

yo @microsoft/sharepoint

When prompted:

Enter the webpart name as your solution name, and then select Enter.
Select Create a subfolder with solution name for where to place the files.
Select Y to allow the solution to be deployed to all sites immediately.
Select N on the question if solution contains unique permissions.
Select WebPart as the client-side component type to be created.

The next set of prompts ask for specific information about your web part:

Enter your web part name, and then select Enter.
Enter your web part description, and then select Enter.
Select React framework as the framework you would like to use, and then select Enter.

Start Visual Studio Code (or your favorite code editor) within the context of the newly created project folder.

cd .\web part name\
code .

Install the library and required dependencies

npm install @pnp/sp --save

Import the library into your application, update constructor, and access the root sp object in render for PnPjs libraries.

sp.setup({spfxContext: this.props.spcontect});

Configure the custom properties

Create a new source code file under the src\webparts\<Webpart name>\components\ folder of the solution. Create the new file I<web part name>State.ts and use it to create a TypeScript Interface

export interface ISpfxPnpPageprovisioningState {
  title: string;

In addition, you need to update the render method of the client-side web part to create a properly configured instance of the React component for rendering. The following code shows the updated method definition.

  public render(): void {
    const element: React.ReactElement<ISpfxPnpPageprovisioningProps> = React.createElement(
    ReactDom.render(element, this.domElement);

Update the tsx file located under the components. First, add some import statements to import the types you defined earlier. Notice the import for I<web part name>Props and I<web part name>State. There are also some imports pnp sp imports.

import * as React from 'react';
import styles from './SpfxPnpPageprovisioning.module.scss';
import { ISpfxPnpPageprovisioningProps } from './ISpfxPnpPageprovisioningProps';
import { ISpfxPnpPageprovisioningState } from './ISpfxPnpPageprovisioningState';
import { autobind } from 'office-ui-fabric-react/lib/Utilities';
import { sp } from "@pnp/sp";
import "@pnp/sp/webs";
import "@pnp/sp/clientside-pages/web";
import { PrimaryButton, TextField } from 'office-ui-fabric-react';
import { ClientsideText, ClientsideWebpart } from "@pnp/sp/clientside-pages";
import "@pnp/sp/comments/clientside-page";

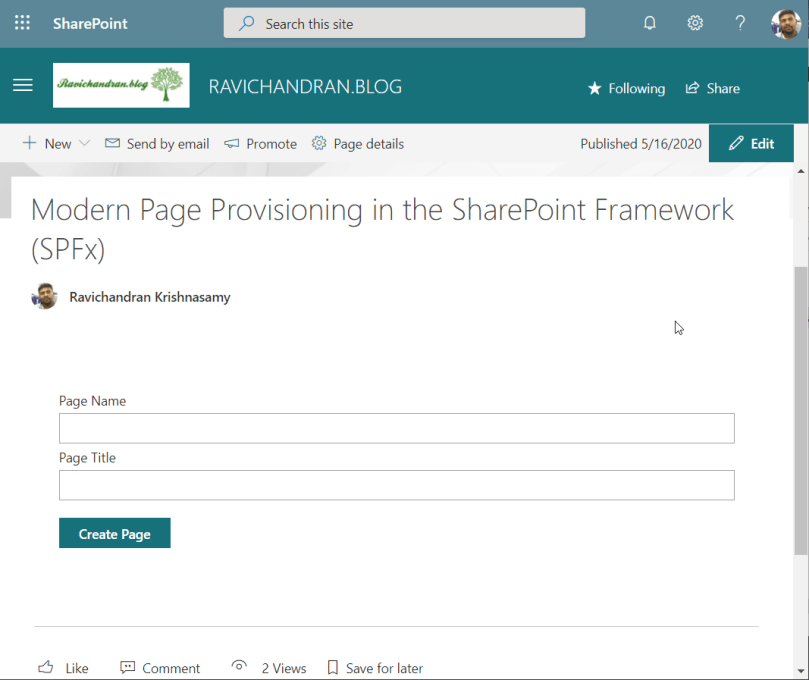

Replace this render function with the following code.

  public render(): React.ReactElement<ISpfxPnpPageprovisioningProps> {
    return (
      <div className={styles.spfxPnpPageprovisioning}>
        <TextField label="Page Name" onChanged={(val) => { this.setState({ name: val }) }} />
        <TextField label="Page Title" onChanged={(val) => { this.setState({ title: val }) }} />
        <br />
        <PrimaryButton text="Create Page" onClick={this._CreatePage} />

Update the React component type declaration and add a constructor, as shown in the following example.

export default class SpfxPnpPageprovisioning extends React.Component<ISpfxPnpPageprovisioningProps, ISpfxPnpPageprovisioningState> {
  constructor(props: ISpfxPnpPageprovisioningProps) {
      spfxContext: this.props.context
    this.state = {
      title: '',
      name: ''

place the below code inside the react component code, these function using PnPjs to create modern page in the Site Pages library

  private async _CreatePage() {
    //Page layout type are "Article" | "Home"
    const page = await sp.web.addClientsidePage(, this.state.title, "Article");
    let section = page.addSection()
    //Column size factor. Max value is 12 (= one column), other options are 8,6,4 or 0
    let column1 = section.addColumn(8);
    let column2 = section.addColumn(4);

    column1.addControl(new ClientsideText("This is text added into column 1"))
    column2.addControl(new ClientsideText("This is text added into column 2"))

    const partDefs = await sp.web.getClientsideWebParts();
    const partDef = partDefs.filter(c => c.Id === "490d7c76-1824-45b2-9de3-676421c997fa");
    const part = ClientsideWebpart.fromComponentDef(partDef[0]);
    // //Header
    // page.topicHeader = "My cool header!";
    // page.headerTextAlignment = "Center";

    // //You can manage to show and hide the published date
    // page.showPublishDate = true;

    // //can hide/show the comments
    // await page.enableComments();
    // //Banner image can change like this
    // page.bannerImageUrl = "/server/relative/path/to/image.png";

Webpart name and id for your reference

ContentRollupWebPart ------- daf0b71c-6de8-4ef7-b511-faae7c388708
BingMapsWebPart ------- e377ea37-9047-43b9-8cdb-a761be2f8e09
ButtonWebPart ------- 0f087d7f-520e-42b7-89c0-496aaf979d58
CallToActionWebPart ------- df8e44e7-edd5-46d5-90da-aca1539313b8
CodeSnippetWebPart ------- 7b317bca-c919-4982-af2f-8399173e5a1e
ConnectorWebPart ------- 893a257e-9c92-49bc-8a36-2f6bb058da34
ContentEmbedWebPart ------- 490d7c76-1824-45b2-9de3-676421c997fa
CountdownWebPart ------- 62cac389-787f-495d-beca-e11786162ef4
CustomMessage ------- 71c19a43-d08c-4178-8218-4df8554c0b0e
DividerWebPart ------- 2161a1c6-db61-4731-b97c-3cdb303f7cbb
DocumentEmbedWebPart ------- b7dd04e1-19ce-4b24-9132-b60a1c2b910d
EventsWebPart ------- 20745d7d-8581-4a6c-bf26-68279bc123fc
FieldsWebPart ------- cf91cf5d-ac23-4a7a-9dbc-cd9ea2a4e859
FormsWebPart ------- b19b3b9e-8d13-4fec-a93c-401a091c0707
GroupCalendarWebPart ------- 6676088b-e28e-4a90-b9cb-d0d0303cd2eb
HeroWebPart ------- c4bd7b2f-7b6e-4599-8485-16504575f590
ImageWebPart ------- d1d91016-032f-456d-98a4-721247c305e8
ImageGalleryWebPart ------- af8be689-990e-492a-81f7-ba3e4cd3ed9c
KindlePreviewWebPart ------- 46698648-fcd5-41fc-9526-c7f7b2ace919
LinkPreviewWebPart ------- 6410b3b6-d440-4663-8744-378976dc041e
ListPropertiesWebPart ------- a8cd4347-f996-48c1-bcfb-75373fed2a27
ListWebPart ------- f92bf067-bc19-489e-a556-7fe95f508720
MarkdownWebPart ------- 1ef5ed11-ce7b-44be-bc5e-4abd55101d16
MyDocumentsWebPart ------- b519c4f1-5cf7-4586-a678-2f1c62cc175a
NewsWebPart ------- 8c88f208-6c77-4bdb-86a0-0c47b4316588
NewsfeedWebPart ------- 0ef418ba-5d19-4ade-9db0-b339873291d0
NewsLink ------- c1b5736d-84dd-4fdb-a7be-e7e9037bd3c3
NewsreelWebPart ------- a5df8fdf-b508-4b66-98a6-d83bc2597f63
PageTitle ------- cbe7b0a9-3504-44dd-a3a3-0e5cacd07788
PeopleWebPart ------- 7f718435-ee4d-431c-bdbf-9c4ff326f46e
PlannerWebPart ------- 39c4c1c2-63fa-41be-8cc2-f6c0b49b253d
PowerAppPlayerWebPart ------- 9d7e898c-f1bb-473a-9ace-8b415036578b
PowerBIReportEmbedWebPart ------- 58fcd18b-e1af-4b0a-b23b-422c2c52d5a2
QuickChartWebPart ------- 91a50c94-865f-4f5c-8b4e-e49659e69772
QuickLinksWebPart ------- c70391ea-0b10-4ee9-b2b4-006d3fcad0cd
SiteActivityWebPart ------- eb95c819-ab8f-4689-bd03-0c2d65d47b1f
SitesWebPart ------- 7cba020c-5ccb-42e8-b6fc-75b3149aba7b
SpacerWebPart ------- 8654b779-4886-46d4-8ffb-b5ed960ee986
DocLibWebPart ------- 6ee6fe3d-ed5f-4c42-b663-b1df52a8ae3b
FileViewerWebPart ------- 2a8b07f2-b38f-4df0-8e8b-2cd2a8b8d32b
ImageViewerWebPart ------- 5e945ea8-0e6c-4f52-b7c2-75ae618396e5
MRModelViewerWebPart ------- e19cef07-c1ad-42ea-a3d8-a536d6415476
People ------- 102f1fc1-3369-4372-8e44-f27dd11a9377
SpacesTestWebPart ------- b3a690f0-bed6-4ccb-a186-ed70412fc35b
Text2DWebPart ------- e30ff702-e1a4-4e02-8c11-3cce0139727a
MrImageThreeSixtyWebPart ------- 8bcd4369-10e6-46a9-b718-fa47db2864ca
MrVideoThreeSixtyWebPart ------- 4bdfb4be-6e39-4b1d-af8b-addbd3a582ff
VideoPlayerWebPart ------- 8902cf6d-22e5-4615-b036-57c613b8db6b
TwitterWebPart ------- f6fdf4f8-4a24-437b-a127-32e66a5dd9b4
EmbeddedVideoWebPart ------- 275c0095-a77e-4f6d-a2a0-6a7626911518
WeatherWebPart ------- 868ac3c3-cad7-4bd6-9a1c-14dc5cc8e823
WorldClockWebPart ------- 81b57906-cbed-4bb1-9823-2e3314f46f28
YammerFullFeedWebPart ------- cb3bfe97-a47f-47ca-bffb-bb9a5ff83d75
YammerEmbedWebPart ------- 31e9537e-f9dc-40a4-8834-0e3b7df418bc
YouTubeEmbedWebPart ------- 544dd15b-cf3c-441b-96da-004d5a8cea1d
tslib ------- 01c4df03-e775-48cb-aa14-171ee5199a15
SPTelemetry ------- 8217e442-8ed3-41fd-957d-b112e841286a
SPSuiteNav ------- f8a8ad94-4cf3-4a19-a76b-1cec9da00219
SPLoader ------- 1c6c9123-7aac-41f3-a376-3caea41ed83f
OfficeUIFabricReact ------- 02a01e42-69ab-403d-8a16-acd128661f8e
SPLodashSubset ------- 73e1dc6c-8441-42cc-ad47-4bd3659f8a3a
SPDataProviders ------- 1cea229f-b208-4202-8014-22503d92a019
sp-webpart-shared ------- 914330ee-2df2-4f6e-a858-30c23a812408
SPCoreLibrary ------- 7263c7d0-1d6a-45ec-8d85-d4d1d234171b
SPPageContext ------- 1c4541f7-5c31-41aa-9fa8-fbc9dc14c0a8
SPWebPartBase ------- 974a7777-0990-4136-8fa6-95d80114c2e0
FabricStyling ------- 17ce0976-e69a-4355-be84-89b69a74717d
SPComponentUtilities ------- 8494e7d7-6b99-47b2-a741-59873e42f16f
SPLoadThemedStyles ------- 229b8d08-79f3-438b-8c21-4613fc877abd
SPDeferredComponent ------- fa4155f6-2498-4a20-8406-5cb3b385b142
SPDiagnostics ------- 78359e4b-07c2-43c6-8d0b-d060b4d577e8
Decorators ------- f97266fb-ccb7-430e-9384-4124d05295d3
OdspUtilitiesBundle ------- cc2cc925-b5be-41bb-880a-f0f8030c6aff
SPComponentBase ------- 467dc675-7cc5-4709-8aac-78e3b71bd2f6
SPBingMap ------- ab22169a-a644-4b69-99a2-4295eb0f633c
RichImage ------- 4e1d8ea3-d90c-46fc-b4a1-367b9bc0046a
SPHttp ------- c07208f0-ea3b-4c1a-9965-ac1b825211a6
SPEmbedWebPartBase ------- 1de47009-ab52-4ff1-a8ed-f5876549bcac
SPHtmlEmbed ------- 3fbad3f4-a628-41b0-8694-2054c09edccd
SPPropertyPane ------- f9e737b7-f0df-4597-ba8c-3060f82380db
I18nUtilities ------- c83d5509-ccd5-4c67-919f-2440f237927a
FlexLayout ------- 0447e11d-bed9-4898-b600-8dbcd95e9cc2
SPCarouselLayout ------- 8ac0c53c-e8d0-4e3e-87d0-7449eb0d4027
SPA11y ------- 05ed6956-59ad-4aa6-9e4e-b832c96ae87b
SpListViewCommon ------- 5f18a9a1-d34e-4b05-a71f-e5e554d8649b
ListDocumentLayout ------- c6eb85d4-7fd2-4938-bfb8-5a899344ee86
GridLayout ------- 706e33c8-af37-4e7b-9d22-6e5694d92a6f
SPTopicShared ------- 49d290fb-a38e-4001-97d3-a2db486db2fa
SPSitePicker ------- 7ad20b0d-6a5d-43c3-a111-8c7f425b6bf2
sp-safehtml ------- 6d3c733c-8cb7-4871-bb22-b5b37c1d518d
BabylonJs ------- 80a36065-cad6-4380-987d-369f14527bbd
SPMLib ------- feb89e5b-d4ba-4f56-a328-01558d50086b
SPDynamicData ------- e40f8203-b39d-425a-a957-714852e33b79
SPListViewExtensibility ------- d37b65ee-c7d8-4570-bc74-2b294ff3b380
SPApplicationBase ------- 4df9bb86-ab0a-4aab-ab5f-48bf167048fb
SPExtensionBase ------- 0773bd53-a69e-4293-87e6-ba80ea4d614b
SPDragZone ------- f7fa85fe-da91-45cb-9813-5c31106cba7b
SPDialog ------- c0c518b8-701b-4f6f-956d-5782772bb731
SPSearchExtensibility ------- 4958ea79-6ff3-4480-8291-0932dd010869

Deploy the solution

You’re now ready to build, bundle, package, and deploy the solution.

Run the gulp commands to verify that the solution builds correctly.

gulp build

Use the following command to bundle and package the solution.

gulp bundle --ship
gulp package-solution --ship

Browse to the app catalog of your target tenant and upload the solution package. You can find the solution package under the sharepoint/solution folder of your solution. It is the .sppkg file. After you upload the solution package in the app catalog. you can find and the web part anywhere across the tenant.

Sharing is caring!

If you have any questions, feel free to let me know in the comments section.
Happy coding!!!

5 thoughts on “Modern Page Provisioning in the SharePoint Framework (SPFx)

  1. Bruno August 31, 2020 / 10:02 pm

    Hi, how about adding a new page using the template created by me using a SharePointFullPage webpart? I dont want my customers to have to create them from native UI…


      • Bruno September 1, 2020 / 8:36 pm

        Hi, but when we specify the parameter for the template (in your case “Article”), is it possible to use a template created by me and deployed as a SharePointFullPage webpart?


      • Ravichandran Krishnasamy September 2, 2020 / 1:45 pm

        Hi Bruno,

        When I tried the same I got error, But instead of using template if you use page as template all works perfect.


  2. Bruno October 9, 2020 / 2:51 pm

    I was able to do that by using this:
    await sp.web.addClientsidePage(url, title, “SingleWebPartAppPage”).then(async page => {
    let sec = page.addSection();

    await sp.web.getClientsideWebParts().then(partDefs => {
    const partDef = partDefs.filter(c => c.Id.replace(“{“,””).replace(“}”,””).toLowerCase() === templateId);
    if (partDef.length < 1) {
    throw new Error("Could not find the web part");
    } else {
    const part = ClientsideWebpart.fromComponentDef(partDef[0]);




Fill in your details below or click an icon to log in: Logo

You are commenting using your account. Log Out /  Change )

Google photo

You are commenting using your Google account. Log Out /  Change )

Twitter picture

You are commenting using your Twitter account. Log Out /  Change )

Facebook photo

You are commenting using your Facebook account. Log Out /  Change )

Connecting to %s
