SharePoint List to JQuery Chart SharePoint Add In

JQuery Chart is easy to implement as a SharePoint Add In, in this sample I have retrieved SharePoint list data and formed it as JSON data and then JSON data object is passed into JQuey chart as input parameter. we can implement various type of chart using JQuery chart for as example bar, circle, line, doughnut, etc,… Here I’m going to explain detail about this SharePoint Add-In implementation.

You can download complete source code from the below URL

174https://code.msdn.microsoft.com/SharePoint-List-to-JQuery-90bfd45f

JQuery Chart SharePoint List

To create new project

Open visual studio 2015

On the file menu select New -> Project (Ctrl + Shift + N)

In the New Project window select or search “App for SharePoint”

In the “New App for SharePoint” wizard choose options based on your preferences

To add new resource file (.js or .css or Images) into project

Select a folder from solution explorer based on your file type (Images or Scripts or Content for CSS)

Right click and select “Open Folder in File Explorer” option

Now paste your files into the folder

Again in the solution explorer window at the top, click “Show All Files” icon

Now you can find the file without active icon, right click and select “Include in Project” Option

Solution compatibility

This sample is tested with SharePoint Online

This sample also compatible with SharePoint 2013 and SharePoint 2016

Code Flow

Fetching Host web URL and App web URL from query string

Host web content created using app web proxy

Retrieved list data from the host web

on the success event, list item collection converted as JSON data using JSON.parse

then the JSON data sent to chart js as parameter

//'use strict';

ExecuteOrDelayUntilScriptLoaded(initializePage, "sp.js");

function initializePage() {
var context = SP.ClientContext.get_current();
var user = context.get_web().get_currentUser();
var hostweburl;
var appweburl;
var appContextSite;
var list;
var listItems;
var web;


// This code runs when the DOM is ready and creates a context object which is needed to use the SharePoint object model
$(document).ready(function () {
getUrl();
});

// This function get the URL informations
function getUrl() {
hostweburl = getQueryStringParameter("SPHostUrl");
appweburl = getQueryStringParameter("SPAppWebUrl");
hostweburl = decodeURIComponent(hostweburl);
appweburl = decodeURIComponent(appweburl).toString().replace("#", "");
var scriptbase = hostweburl + "/_layouts/15/";
$.getScript(scriptbase + "SP.RequestExecutor.js", execOperation);
}

// This function get list data from SharePoint
function execOperation() {
var factory = new SP.ProxyWebRequestExecutorFactory(appweburl);
context.set_webRequestExecutorFactory(factory);
appContextSite = new SP.AppContextSite(context, hostweburl);
web = appContextSite.get_web();
context.load(web);
var camlQuery = new SP.CamlQuery();
list = web.get_lists().getByTitle("Post Reach");
listItems = list.getItems(camlQuery);
context.load(list);
context.load(listItems);
context.executeQueryAsync(onGetSPListSuccess, onGetSPListFail);
}


// This function is executed if the above call is successful
function onGetSPListSuccess() {
$("#DivSPGrid").empty();
var chartlabel = '';
var chartdata1 = '';
var chartdata2 = '';
var barChartData = '';
var listEnumerator = listItems.getEnumerator();
chartlabel = "{\"labels\":[";
chartdata1 = "],\"datasets\":[{" +
"\"fillColor\":\"rgba(220,220,220,0.5)\"," +
"\"strokeColor\":\"rgba(220,220,220,0.8)\"," +
"\"highlightFill\":\"rgba(220,220,220,0.75)\"," +
"\"highlightStroke\":\"rgba(220,220,220,1)\"," +
"\"data\":[";
chartdata2 = "]},{" +
"\"fillColor\":\"rgba(151,187,205,0.5)\"," +
"\"strokeColor\":\"rgba(151,187,205,0.8)\"," +
"\"highlightFill\":\"rgba(151,187,205,0.75)\"," +
"\"highlightStroke\":\"rgba(151,187,205,1)\"," +
"\"data\":[";
while (listEnumerator.moveNext()) {
var listItem = listEnumerator.get_current();
chartlabel += "\"" + listItem.get_item("Title") + "\",";
chartdata1 += listItem.get_item("Facebook") + ",";
chartdata2 += listItem.get_item("Twitter") + ",";
}
chartlabel = chartlabel.replace(/,\s*$/, "");
chartdata1 = chartdata1.replace(/,\s*$/, "");
chartdata2 = chartdata2.replace(/,\s*$/, "");
var str = chartlabel + chartdata1 + chartdata2 + ']}]}';
barChartData = JSON.parse(str);
var ctx = document.getElementById("chartCanvas").getContext("2d");
window.myBar = new Chart(ctx).Bar(barChartData, { responsive: true });
}

// This function is executed if the above call fails
function onGetSPListFail(sender, args) {
alert('Failed to get list data. Error:' + args.get_message());
}

//This function split the url and trim the App and Host web URLs
function getQueryStringParameter(paramToRetrieve) {
var params =
document.URL.split("?")[1].split("&");
for (var i = 0; i < params.length; i = i + 1) {
var singleParam = params[i].split("=");
if (singleParam[0] == paramToRetrieve)
return singleParam[1];
}
}
}
<%-- The following 4 lines are ASP.NET directives needed when using SharePoint components --%>

<%@ Page Inherits="Microsoft.SharePoint.WebPartPages.WebPartPage, Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" MasterPageFile="~masterurl/default.master" Language="C#" %>

<%@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%-- The markup and script in the following Content element will be placed in the <head> of the page --%>
<asp:Content ContentPlaceHolderID="PlaceHolderAdditionalPageHead" runat="server">
<script type="text/javascript" src="../Scripts/jquery-1.9.1.min.js"></script>
 <SharePoint:ScriptLink Name="sp.js" runat="server" OnDemand="true" LoadAfterUI="true" Localizable="false" />
 <meta name="WebPartPageExpansion" content="full" />

 <!-- Add your CSS styles to the following file -->
 	<link rel="Stylesheet" type="text/css" href="../Content/App.css" />

 <!-- Add your JavaScript to the following file -->
 <script type="text/javascript" src="../Scripts/App.js"></script>
<script type="text/javascript" src="../Scripts/Chart.js"></script>
</asp:Content>

<%-- The markup in the following Content element will be placed in the TitleArea of the page --%>
<asp:Content ContentPlaceHolderID="PlaceHolderPageTitleInTitleArea" runat="server">
SPListItemCollection to JQuery Chart SharePoint Add In
</asp:Content>

<%-- The markup and script in the following Content element will be placed in the <body> of the page --%>
<asp:Content ContentPlaceHolderID="PlaceHolderMain" runat="server">
<div style="width: 50%">
<canvas id="chartCanvas" height="300" width="450"></canvas>
</div>
</asp:Content>

You can download complete source code from the below URL

174https://code.msdn.microsoft.com/SharePoint-List-to-JQuery-90bfd45f

Hope you find this article helpful, check out my other articles too.
Like my Facebook page to get future articles notification
Let me know your Queries and feedback in comments

SharePoint List to JQuery Table

We have lot of benefits using JQuery Table in SharePoint such as quick search, selecting of number of items in view, shorting and footer navigation. In this SharePoint Add-in, I’m retrieving SharePoint list data and building HTML table, then the HTML table mapped with JQuery Table script. Read further for detailed step by step instruction to develop this SharePoint Add-In.

2016-02-08_22-11-19

Create a new project in visual studio and select “App for SharePoint” project Template, in the new project wizard select SharePoint Hosted and select SharePoint environment type.

After the project is created, open Solution explorer, in that open App.js under Scripts folder and remove all default code which is generated by visual studio and paste the below Java script code into that page.


var context;
var hostweburl;
var appweburl;
var appContextSite;
var list;
var listItems;
var web;

$(document).ready(function () {
//SP.SOD.executeFunc('sp.js', 'SP.ClientContext', getUrl);
getUrl();
});

function getUrl() {
hostweburl = getQueryStringParameter("SPHostUrl");
appweburl = getQueryStringParameter("SPAppWebUrl");
hostweburl = decodeURIComponent(hostweburl);
appweburl = decodeURIComponent(appweburl);
var scriptbase = hostweburl + "/_layouts/15/";
$.getScript(scriptbase + "SP.Runtime.js",
function () {
$.getScript(scriptbase + "SP.js",
function () { $.getScript(scriptbase + "SP.RequestExecutor.js", execOperation); }
);
}
);
event.preventDefault();
}

function execOperation() {
context = new SP.ClientContext(appweburl);
var factory =
new SP.ProxyWebRequestExecutorFactory(
appweburl
);
context.set_webRequestExecutorFactory(factory);
appContextSite = new SP.AppContextSite(context, hostweburl);
web = appContextSite.get_web();
context.load(web);
var camlQuery = new SP.CamlQuery();
list = web.get_lists().getByTitle("Documents");
listItems = list.getItems(camlQuery);
context.load(list);
context.load(listItems);
context.executeQueryAsync(onGetSPListSuccess, onGetSPListFail);
}
function onGetSPListSuccess() {
$("#DivSPGrid").empty();
var listInfo = '';
var listEnumerator = listItems.getEnumerator();
listInfo += "
<table id='SPTable' class='display'>
<thead>
<tr>" +
"
<th>Id</th>
" +
"
<th>Title</th>
" +
"
<th>Modified By</th>
" +
"
<th>Modified date</th>
" +
"</tr>
</thead>
<tbody>";
while (listEnumerator.moveNext()) {
var listItem = listEnumerator.get_current();
listInfo += '
<tr>
<td>' + listItem.get_item('ID') + '</td>
'
+ '
<td>' + listItem.get_item('FileLeafRef') + '</td>
'
+ '
<td>' + listItem.get_item('Editor').get_lookupValue() + '</td>
'
+ '
<td>' + listItem.get_item('Modified').format('dd MMM yyyy, hh:ss') + '</td>
'
+ '</tr>
';
}
listInfo += '</tbody>
</table>
';
$("#DivSPGrid").html(listInfo);
$('#SPTable').dataTable();
}

// This function is executed if the above call fails
function onGetSPListFail(sender, args) {
alert('Failed to get SP List. Error:' + args.get_message());
}
function getQueryStringParameter(paramToRetrieve) {
var params =
document.URL.split("?")[1].split("&");
for (var i = 0; i < params.length; i = i + 1) {
var singleParam = params[i].split("=");
if (singleParam[0] == paramToRetrieve)
return singleParam[1];
}
}

Rename default.aspx page, which is located under pages folder based on your requirement here I have changed as JQueryTable.aspx.

Double click AppManifest.xml file and select List Read permission under Permissions tab.

Add JS file, CSS file and Images into respective folders, for reference see the below image. You can find the link to download the Full project at the end of this post.

2016-02-08_22-35-22

Add newly added JS and CSS files reference in the JQueryTable.aspx and add a new element of Div with id as DivSPGrid refer the below code for more detail.


<%-- The following 4 lines are ASP.NET directives needed when using SharePoint components --%>

<%@ Page Inherits="Microsoft.SharePoint.WebPartPages.WebPartPage, Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" MasterPageFile="~masterurl/default.master" Language="C#" %>

<%@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%-- The markup and script in the following Content element will be placed in the <head> of the page --%>
<asp:Content ContentPlaceHolderID="PlaceHolderAdditionalPageHead" runat="server">
<script type="text/javascript" src="../Scripts/jquery-1.9.1.min.js"></script>
 <SharePoint:ScriptLink name="sp.js" runat="server" OnDemand="true" LoadAfterUI="true" Localizable="false" />
 <meta name="WebPartPageExpansion" content="full" />

<!-- Add your CSS styles to the following file -->
 	<link rel="Stylesheet" type="text/css" href="../Content/App.css" />
 	<link href="../Content/jquery.dataTables.css" rel="stylesheet" />
 <!-- Add your JavaScript to the following file -->
 <script type="text/javascript" src="../Scripts/App.js"></script>
<script type="text/javascript" src="../Scripts/jquery.dataTables.js"></script>
</asp:Content>

<%-- The markup in the following Content element will be placed in the TitleArea of the page --%>
<asp:Content ContentPlaceHolderID="PlaceHolderPageTitleInTitleArea" runat="server">
SharePoint List to JQuery Table
</asp:Content>

<%-- The markup and script in the following Content element will be placed in the <body> of the page --%>
<asp:Content ContentPlaceHolderID="PlaceHolderMain" runat="server">
<div id="DivSPGrid">

</div>
</asp:Content>

Its time to review our SharePoint Add-in output, build and deploy the project and select “Document” in the SharePoint permission request page, you can change different list from the app.js file code as per your requirement.

Feel free to contact me thru comments if you face any issues.

Good Luck on building your code!!!

Output of our JQuery Table in SharePoint

2016-02-08_22-51-37

Actual SharePoint List for your reference

2016-02-08_22-53-22

zip_iconhttps://code.msdn.microsoft.com/SharePoint-List-to-JQuery-97dcee17

QR Code Generator Add-In for SharePoint

Using this you can generate QR Code for any text value and URL, this add-in can be add anywhere in you SharePoint Dashboard. Below you can see step by step instructions to develop this SharePoint Add-In. Also the complete project source code is available for download, find the download link at the bottom of this post.

2016-01-26_21-30-19

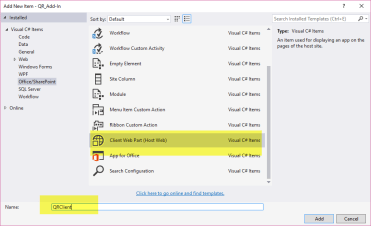

Create new Project in Visual studio using “App for SharePoint” template, here I’m using visual studio 2015 version. In the new project wizard select SharePoint-Hosted and rest you can select based on your requirements. Provider-Hosted application can also be selected.
I’ve added two JS files qr.js and initstrings.js, these JS files are developed by Microsoft. Here I modified those files. Modified files can be found in the project.

2016-01-26_18-44-22
Add new “Client Web Part (Host Web)” and select “Create a new app web page for the client web part content”, Edit newly created aspx page which is located in the Pages folder. Add below JS code and HTML. In the JS function I am passing Textbox value and Div name as parameter, JavaScript will generate QR code based on the content in Text box value.

 <script type="text/javascript">
 function generatefn() {
 if ($('#QR_URL').val() != '')
 onLoadQrCode($('#QR_URL').val(), 'DivImage');
 }
 </script>
 <input type="text" id="QR_URL" value="" style="width:250px" /><input onclick="generatefn()" type="button" id="btnGenerate" value="Generate" />
<div id="DivImage"></div>

Project source Download link

zip_icon https://code.msdn.microsoft.com/QR-Code-Generator-Add-In-a4cdd884
